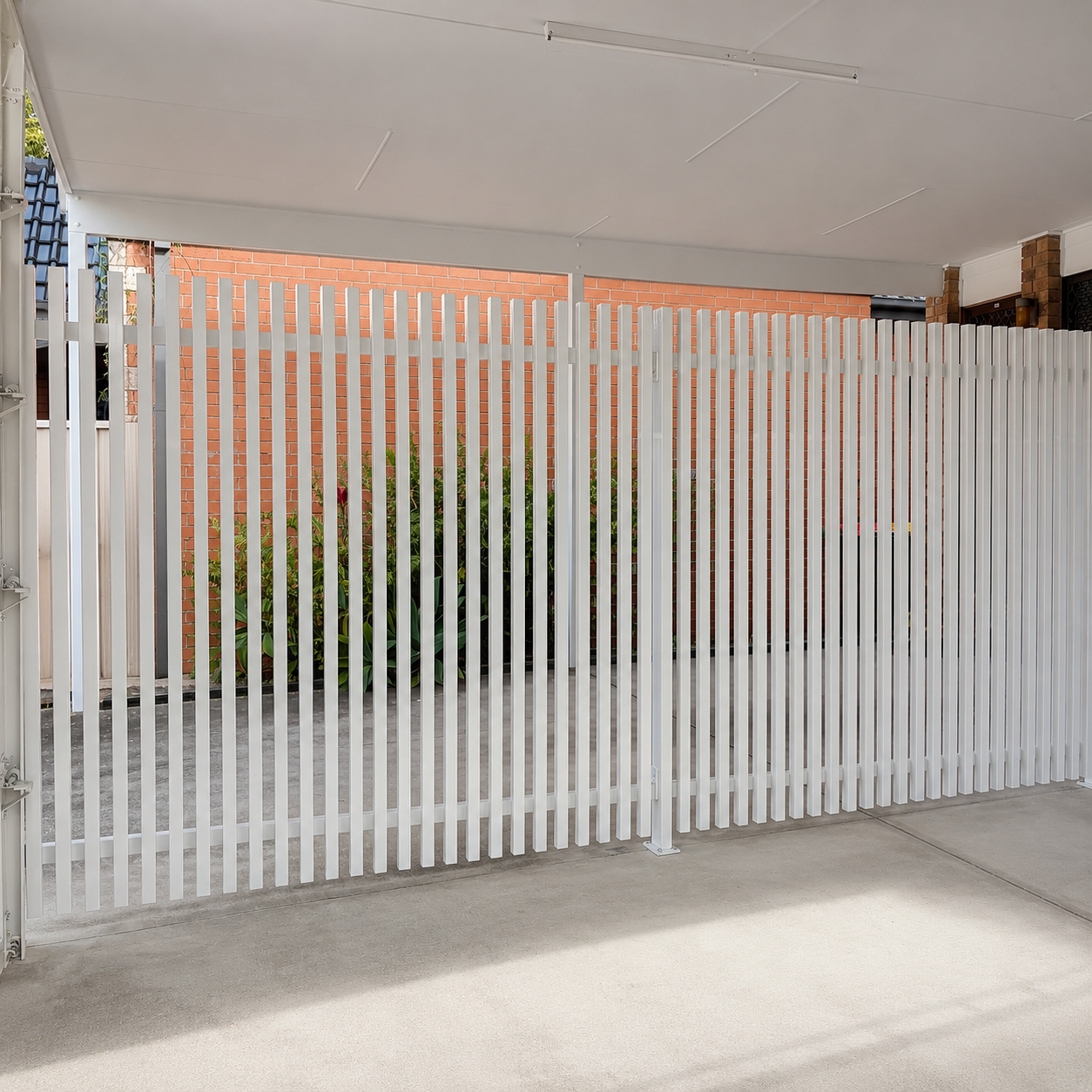

A white vertical batten fence installed along the side of a covered patio or carport, with a brick wall and greenery visible in the background

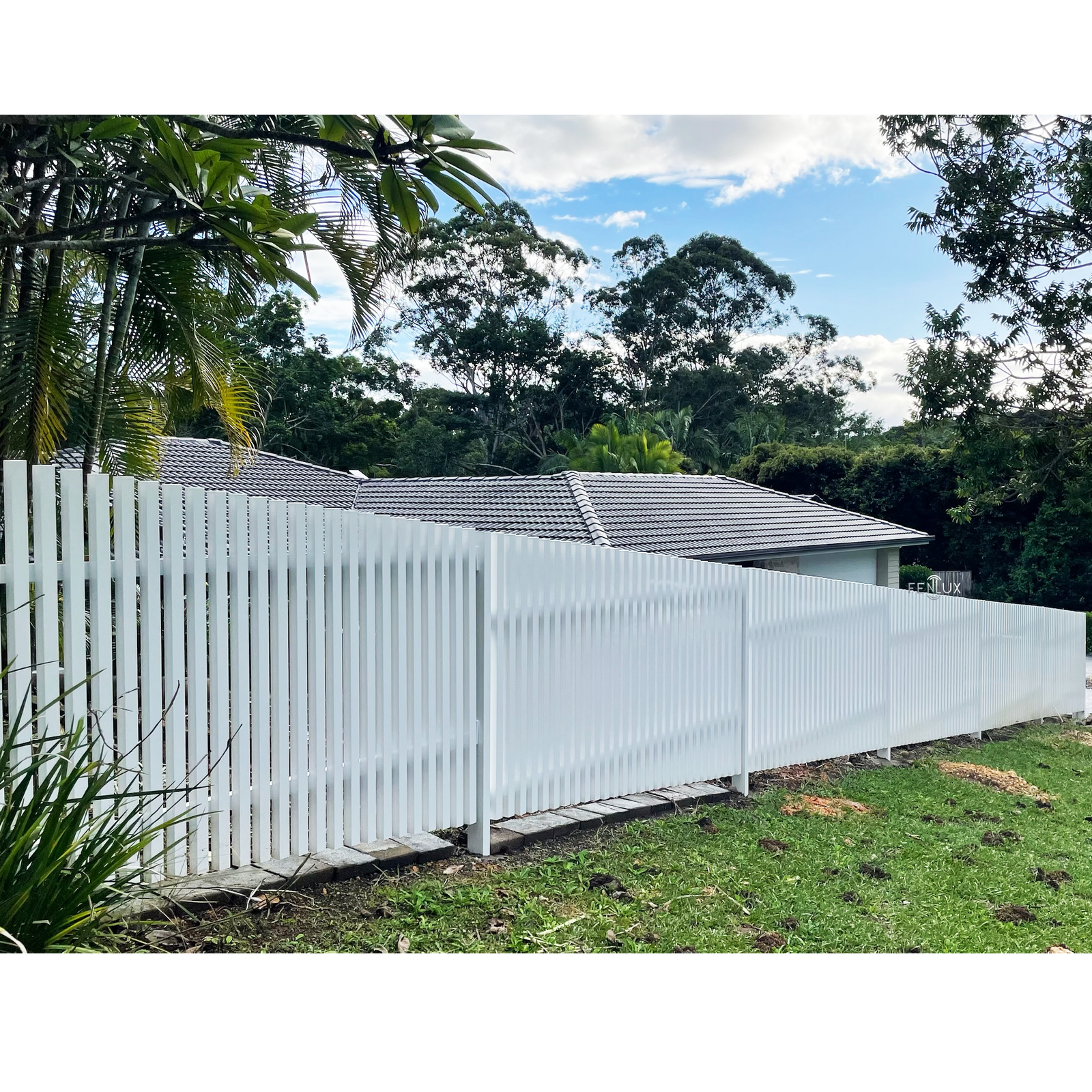

Two-story house with a white 40x40 batten fence

White batten fence with concrete sleeper wall

DIY Aluminium 4040 Battens Fence Panel 2185mm wide

Color: White White Black Grey

Assemble Method: Screws Assemble Screws Assemble Rivets Assemble

Size: 2185x1200mm 2185x1200mm 2185x1800mm

Product variants

$450.00

GST included

Pickup available at 1/64 Jardine Drive

Usually ready in 2-4 days

DIY 40MM BATTEN FENCE SYSTEM

A bolder fence line for modern homes

Most fence runs do not land perfectly on standard panel sizes. This 40x40 aluminium batten system is designed so rails and battens can be assembled, trimmed and adjusted on site.

SITE-ADJUSTABLE BATTEN FENCING

A batten fence system that adapts to your post spacing

This 40x40 aluminium batten panel is designed for fence runs where each bay may need final checking before installation. Instead of relying on one fixed welded panel size, the battens and rails are supplied as a modular system, giving installers room to trim, set out and finish each panel on site.

40x40 aluminium battens 35mm standard gap Trim-to-fit rail system

Adjustable DIY System

Built as a DIY kit, not a fixed welded panel.

Trim rails and battens to suit your opening
Adjust spacing to suit the final panel width
Set rail position to suit your site layout
Screw fixing can support sloped or raked fence sections

Lower Maintenance Cost

Designed so future repairs are easier to manage.

Replace a single damaged batten if needed
No need to remake the whole fence panel
Avoid full panel replacement and re-powder coating
Practical for long-term residential use

Fast Dispatch, Lower Freight Cost

Flat pack delivery

Faster to dispatch than made-to-order welded panels
Flat pack panels are easier and cheaper to freight
Better suited for interstate delivery
Helps reduce waiting time and overall project cost

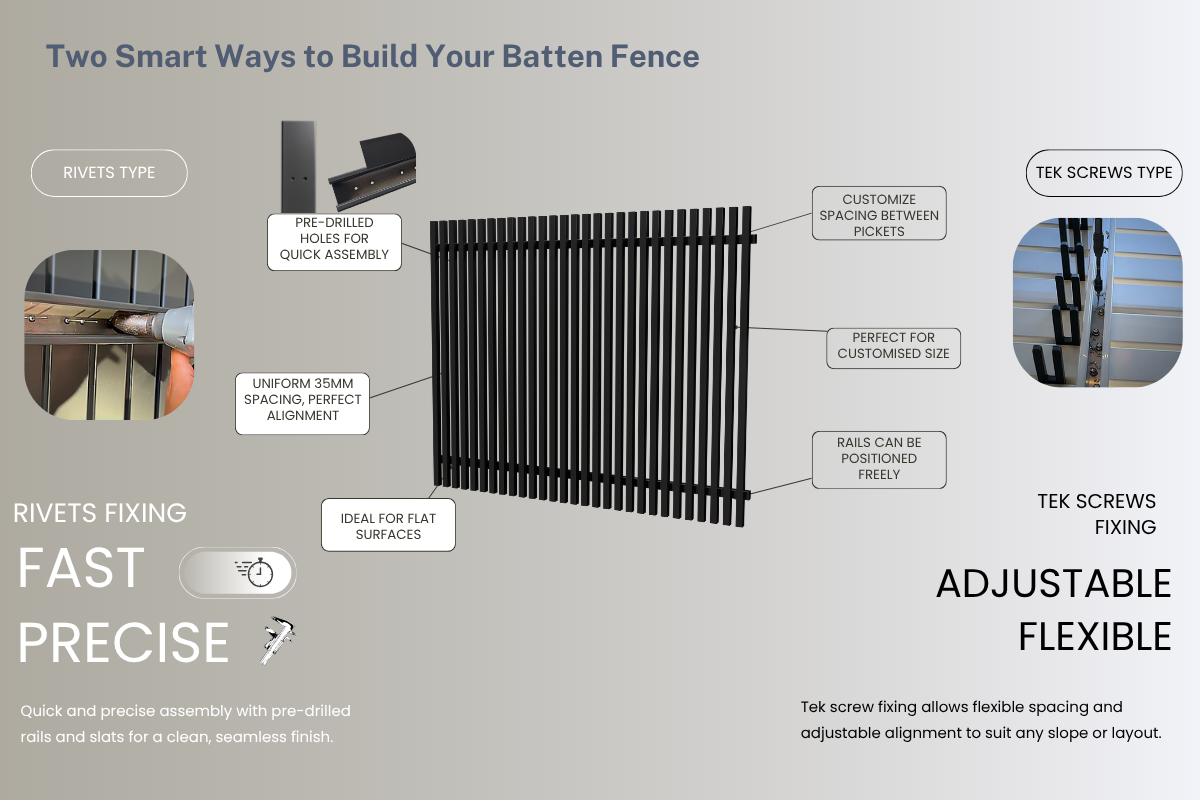

Screw or Rivet Assembly

Choose the fixing method that suits your needs

Rivet fixing suits standard straight fence runs
Screw fixing allows more on-site adjustment
Adjust batten spacing more easily with screws
Screw fixing is better suited for custom widths and raked layouts

Included

40x40mm slats pack(2 packs - 29pcs)
40x50 U-shape rails(2 rails in a pack)
Brackets with screws
116pcs fixings for slats
40x40mm plastic caps for slats(29 pcs)

Download Drawing (PDF)

⚠️Assemble needed by the customer⚠️

Not included

These items are not supplied with this product. Please confirm what you need before ordering.

Posts are not included

Highlights

Comes as a package, with slats and rails are pre-drilled with rivets holes depends on fixing type
Uniform in design, often suited for a consistent and aligned aesthetic
Helps prevent climbing, making it safer for childproofing or pet containment

Product Specifications

Batten Size: 40x40x1.2mm
Rail Size: 40x50x2185mm
Gap: 35mm
Batten Top cap: Nylon push-in caps

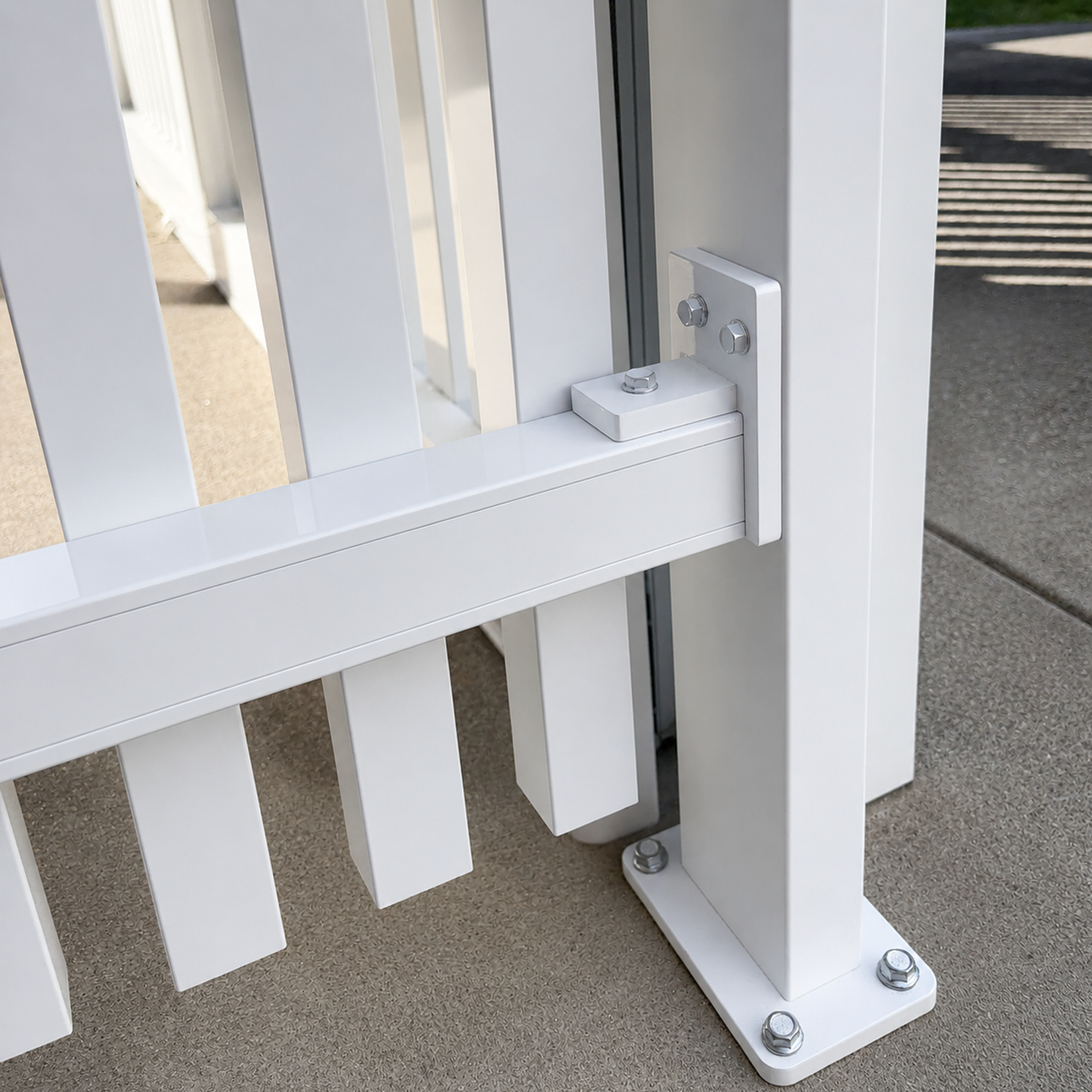

Brackets: 60x90x10mm with screws

Warranty and Returns

We are committed to delivering exceptional product quality.

Our products are carefully crafted using premium raw materials, with no shortcuts in the manufacturing process. We are so confident in their durability and reliability that we proudly offer a 10-Year Warranty.

View Warranty Information

View Refund Policy

More About This Product

Modern DIY Aluminium 40x40 Batten Fence Panel

The Fenlux DIY Aluminium 40x40 Batten Fence Panel is designed for homeowners, builders, and installers looking for a modern fencing solution with strong visual impact and long-term durability. Manufactured from high-quality aluminium alloy, this fence system provides a clean architectural appearance while offering a low-maintenance alternative to traditional fencing materials.

The vertical batten design creates a contemporary fence style that is widely used in modern residential developments across Australia. With its modular structure and flexible assembly design, this aluminium batten fence panel is suitable for a variety of property layouts and installation needs.

Why Choose an Aluminium Batten Fence Panel

Aluminium batten fencing has become one of the most popular modern fence styles because it combines architectural design with practical durability. Compared with timber fencing, aluminium battens will not rot, warp, or require ongoing repainting, making them ideal for Australian weather conditions.

The vertical batten layout also creates a strong and modern exterior appearance while allowing flexibility in spacing and panel design. This makes aluminium batten fencing suitable for both privacy fencing and decorative boundary fencing.

Key Features

40x40mm aluminium batten profile
Modern vertical batten fence design
Durable powder-coated aluminium construction
DIY-friendly modular assembly system
Flexible spacing and layout adjustments
Low maintenance compared with timber fencing
Suitable for residential and light commercial fencing

Where This Fence Panel Works Best

This aluminium batten fence panel works well across many residential and architectural fencing projects including:

Modern front yard fencing
Boundary fences for contemporary homes
Side fence runs
Pool area fencing
Architectural landscaping projects

The clean vertical batten appearance helps create a stylish boundary while maintaining a modern and refined look that complements contemporary building design.

What Makes This DIY Fence Panel Practical

The modular structure of this fence panel allows installers to adjust spacing and layout to better suit different property dimensions. This flexibility makes the product easier to install compared with fixed welded panels.

Many homeowners choose aluminium batten fencing when they want a modern fence style that provides visual privacy while still maintaining airflow and architectural design consistency.

What’s Included

40x40mm aluminium battens
Matching fence rails
Mounting brackets
Tek screws and fasteners
Protective caps

Product Overview

Material: Aluminium Alloy 6060
Batten profile: 40x40mm
Fence style: Vertical aluminium batten fence
Application: DIY aluminium fence systems

Frequently Asked Questions

Is aluminium batten fencing suitable for modern homes?

Yes. Aluminium batten fences are widely used in modern residential design because they create a clean architectural appearance while offering durability and low maintenance.

Does aluminium batten fencing provide privacy?

Yes. Depending on the spacing between battens, aluminium batten fencing can provide varying levels of privacy while still maintaining airflow and a modern visual design.

Can this fence panel be installed as a DIY project?

Yes. The modular design allows homeowners and installers to assemble the panel and adjust the spacing to suit their fencing layout.

Why choose aluminium instead of timber fencing?

Aluminium fencing is resistant to rust, corrosion, and weather damage. It requires far less maintenance than timber fencing and maintains its appearance for many years.

Looking for matching fence components or gate options? Explore our aluminium fence range, pedestrian gates, and sliding gate collection to complete your project.

DIY Assembly

Frame assembly
Slats or pickets assembly
Hardware fitting
Assembly video guidance
Phone or FaceTime support

May Require a Tradie

Site levelling or drainage work
Concrete strip or track preparation
Posts and alignment
Motor installation
Electrical power supply

If you are not confident with site work, we recommend using a qualified installer. You can still assemble many product components yourself before installation.
