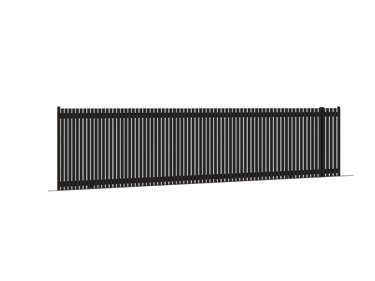

Raked Bottom DIY Aluminium Vertical Pickets Sliding Gate

Raked Bottom Aluminium Vertical Picket Sliding Gate designed for driveway openings where the ground slopes from left to right. This is a custom-built sliding gate solution made by FENLUX to suit site-specific conditions where a standard rectangular gate is not suitable.

Unlike standard sliding gates, a raked bottom gate is manufactured with a sloped bottom edge to match the driveway gradient. This ensures the gate follows the ground line while maintaining a clean and level appearance along the top.

Is This the Right Gate for Your Project?

• Choose this gate if your driveway slopes from left to right
• Choose this gate if a standard rectangular sliding gate would sit out of level
• Choose this gate if you need a custom-made solution to match site conditions
• Choose a standard sliding gate if your driveway opening is level

Why Raked Bottom Gates Are Custom Made

Raked bottom sliding gates are not standard products. Each gate must be designed based on your specific site measurements, including opening width, height difference, and slope direction.

Because of this, raked bottom gates are manufactured as finished panels rather than DIY adjustable kits. This ensures correct geometry, structural alignment, and a consistent finished appearance once installed.

How the Design Works

To achieve a clean result, FENLUX manufactures the gate based on the lower side of your driveway. The top of the gate is typically kept level, while the bottom edge follows the slope of the ground.

This means that on the higher side of the driveway, the visible gate height will be shorter compared to the lower side. This is a normal and expected outcome for raked gate designs.

Information Required for Quotation

To produce an accurate design and quotation, the following information is required:

• Gate opening width
• Left side height
• Right side height
• Which side of the driveway is lower
• Whether the gate top should remain level

This information allows FENLUX to determine the correct slope angle and final gate geometry.

Key Features

• Custom-built aluminium sliding gate for sloping driveways
• Raked bottom design to follow ground gradient
• Level top edge for clean visual alignment
• Vertical picket design to match modern fencing systems
• Powder-coated aluminium for outdoor durability

Assembly & Installation Notes

This product is supplied as a completed custom gate panel rather than a standard DIY kit. Assembly of the panel is not required.

However, installation of a sliding gate system still requires site preparation, post installation, track alignment, and mechanical setup. Customers should ensure installation requirements are understood before proceeding.

Motor & Post Options

Gate motors, racks, and 100x100mm gate posts are not included but are available separately from FENLUX. These can be selected based on your project requirements.

Where This Gate Works Best

• Driveways with left-to-right slope
• Uneven ground conditions across the gate opening
• Projects requiring a custom-fit sliding gate solution
• Modern residential driveway entrances

Product Specifications

• Material: Aluminium Alloy 6060
• Gate type: Sliding driveway gate (custom-built)
• Style: Vertical picket design
• Construction: Pre-assembled panel

Frequently Asked Questions

Can I use a standard sliding gate on a sloping driveway?
In most cases, no. A standard rectangular gate may appear out of level if the ground slopes from left to right. A raked bottom gate is typically required.

Is this a DIY gate kit?
No. This gate is custom-made and supplied as a finished panel.

Why is the height different on each side?
This is due to the slope of the driveway. The gate is designed based on the lower side to maintain a level top edge.

Do I need to provide measurements?
Yes. Accurate site measurements are required to produce the correct gate design.

What is a raked bottom sliding gate?

A raked bottom gate is designed so the bottom follows the slope of your driveway while the top remains level for a clean, modern appearance.

Can sliding gates be installed on sloped driveways?

Yes. A custom raked bottom sliding gate is the most effective solution for uneven ground, ensuring proper clearance and smooth operation.

Why not use a standard flat-bottom gate?

Flat-bottom gates on sloped driveways often leave large gaps underneath or cause installation issues. A raked gate solves this by matching the slope.

How do I measure my driveway slope?

You can provide your opening width, height, and slope details, or simply send us photos of your site and our team will assist with the correct specifications.

Is this gate made to order?

Yes. All raked bottom gates are custom fabricated based on your measurements to ensure a precise fit.
