DIY Aluminum Horizontal Slats Pedestrian Gate with lock

$513.00
GST included. Shipping calculated at checkout.
Designed for real sites
Built to adapt on site. Trim to fit. Simple assembly.
Color: Black
Size: 1000x1785mm
QUICK QUOTE WIZARD

Pickup available at 1/64 Jardine Drive

Usually ready in 2-4 days

What's Included
  • 65x65mm vertical frame @2pcs
  • 50x65mm horizontal frame @2pcs
  • 65x16mm horizontal slats @22 pcs or 12pcs
  • 25x40mm vertical F-channels @2pcs
  • metal screws and frame screws
  • metal handle lock
  • 15mm aluminum spacers

⚠️hinges and gate side posts are not included⚠️
⚒️ Product Specifications

Slats Size: 65x16mm
Vertical Frame: 65x65mm
Rail Size: 50x65x1200mm
Slats gap: 15mm(default)
Technical Drawing

⚠️Assemble needed by the customer⚠️
Warranty and Returns

We are committed to delivering exceptional product quality.

Our products are carefully crafted using premium raw materials, with no shortcuts in the manufacturing process. We are so confident in their durability and reliability that we proudly offer a 10-Year Warranty.

View Warranty Information

View Refund Policy
💡 Highlights

⭐ Lock can be placed on left hand side or right hand side

⭐This DIY HS pedestrian gate kit can be maximum made to 1.2m wide.

⭐ Lock holes pre-drilled on gate frame.

⭐Gate width can be shorten and gap can be changed before assembling

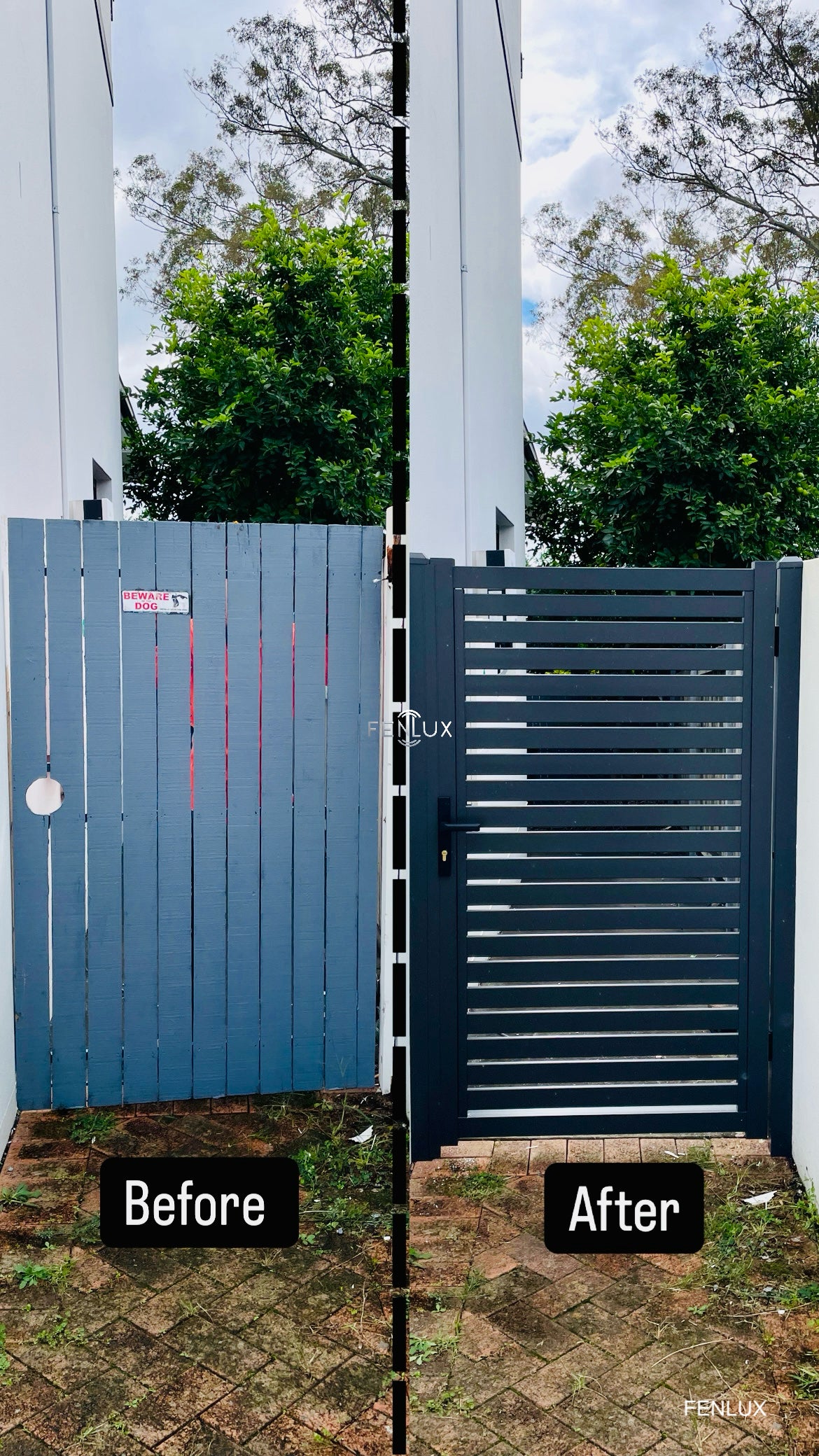

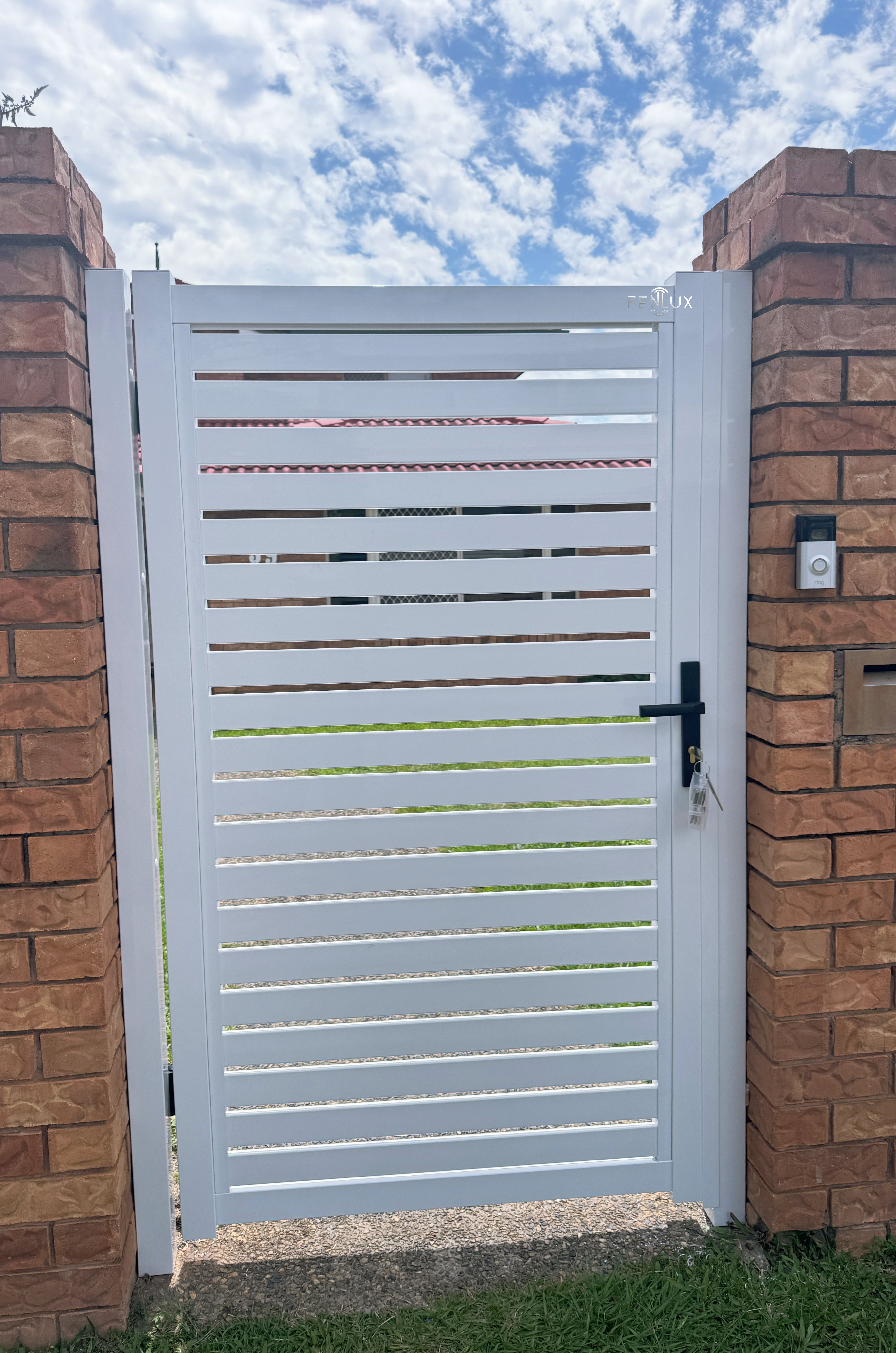

⭐Suitable for side house or front yard entrance door.

Is this suitable for my site?


Yes. Fenlux systems are designed for real residential sites.

Uneven ground, non-exact spacing and on-site adjustment are expected.
Do my measurements need to be exact?

No. Exact measurements are not required before ordering.

Final fitting and adjustments are normally done on site during installation.
What if my post spacing doesn’t match the panel width?


That’s normal. Panels and rails can be trimmed to suit actual spacing.

Components can be shortened, but not extended.
What if something doesn’t fit as expected?


Pause before making irreversible changes.

Most issues are related to spacing or alignment and can be resolved by adjustment.
What if I realise I ordered the wrong size?


In many cases, on-site adjustment solves the issue.

One advantage of modular DIY systems is that individual components can be replaced without restarting the entire project.
What if I’m unsure during installation?


Fenlux systems are designed to allow rework.

Minor mistakes do not usually mean the project has failed.
Looking for more detailed scenarios?Visit our Help & FAQ page.


Help & FAQ page

✔️10 Years Warranty

✔️All Powder Coated

✔️30 Days Returns Guarantee

✔️Assemble guide vedio avaliable

Not sure how to DIY

Watch our short video on Youtube

Feel free to contact us if you need more information.
